Props & Formwork Ties

Telescopic Props:

Telescopic Prop Systems that are used as a shoring mechanism under the flooring and beams is per-formed in two different types, open and closed .

The telescopic props of closed mechanism are used to carry the lighter loads and the open mechanism plantings have endurance of 25 KN and they are designed for heavier loads .

In the manufacturing of ALAWADI Telescopic Prop Systems , certified pipes are used and the manufacturing process is conducted on sub-gas automatic welding machines.

The adjustment holes of the internal pipes are drilled via special 9 hole drilling machine to minimze the possibility of buckling .

The surfaces of the planting systems, for which the production process is completed, are painted with ant-irust paint.

This means durability and long term utilization. Based on request , Height of the prop is 3.25m, height of the out pipe is 1.50 m , height of the other pipe is 2.00m, and the weight of the prop is 11 kg.

The high tensile steel pin is located through a slot in the outer section and a hole on the inner section for coarse adjustment . The cast collar located below the pin gives fine adjustment for lending and striking.

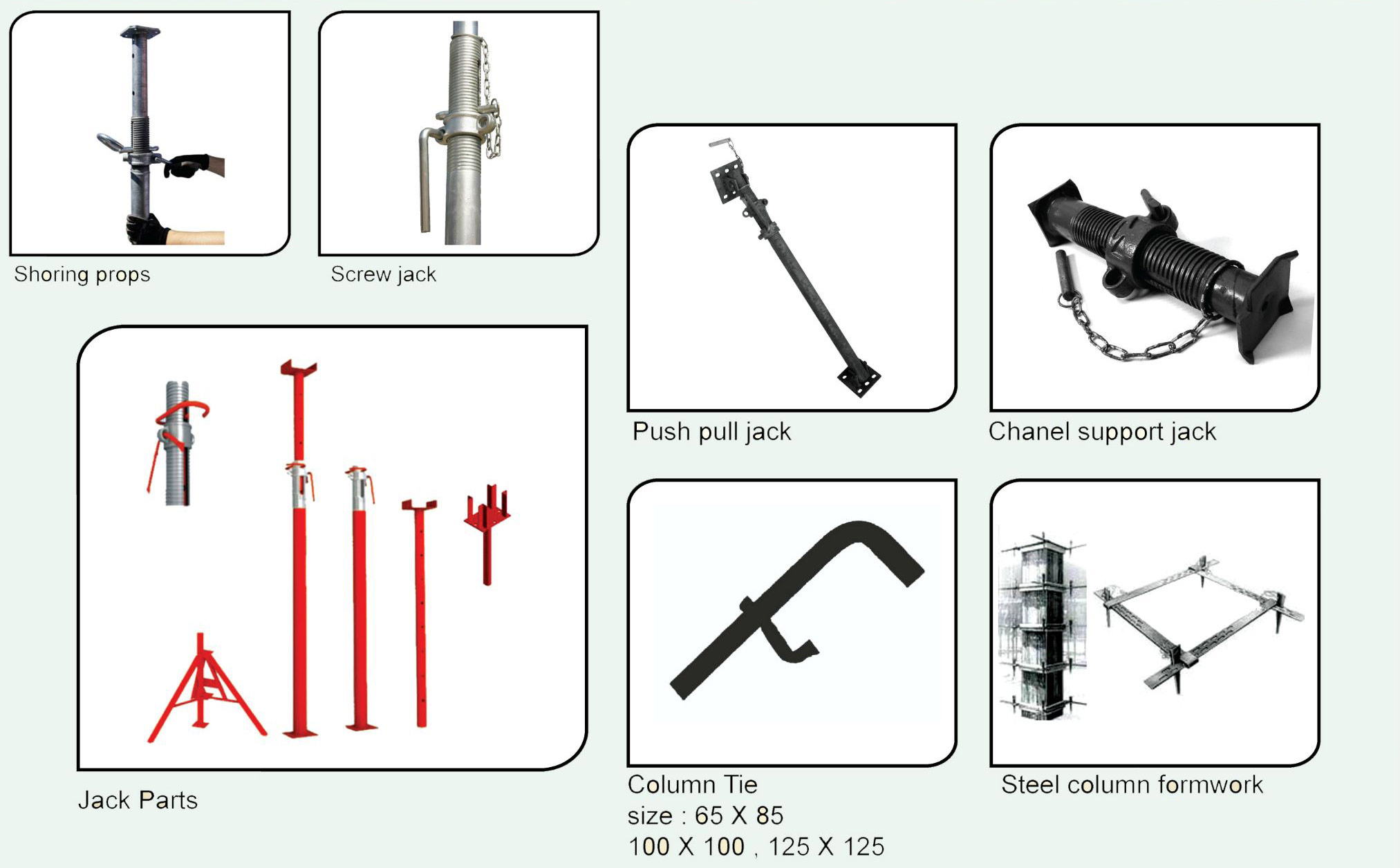

Shoring props
Screw jack
Push pull jack
Chanel support jack
Jack Parts
Column Tie
Steel column formwork
